Dust and Particulate from Construction Activities
Dust from demolition, construction, and cleanup activities can significantly impact local air quality, posing a health hazard and a nuisance. For that reason, dust mitigation measures are required at most construction sites, and real-time dust monitoring may be required to verify that mitigation measures are effective. Dust Monitor Datasheet
Air Quality Standards
The EPA’s National Ambient Air Quality Standard sets limits for concentrations of airborne pollutants that can harm health and cause environmental damage.
Construction dust falls under the standards for particulate matter: PM10 for particles with diameters 10 microns and smaller – typically soil, and PM2.5 for particles with diameters 2.5 microns and smaller – typically exhaust from heavy machinery.
The PM10 limit is 150 micrograms per cubic meter averaged over 24 hours. The PM2.5 limit is 35 micrograms per cubic meter averaged over 24 hours.
Local codes, agencies, and communities set specific regulations, but in general, dust monitoring should follow these practices:
- Dust monitors should be placed in path of the migrating dust, typically at the project fenceline and at critical locations outside the fenceline, such as hospitals and schools.

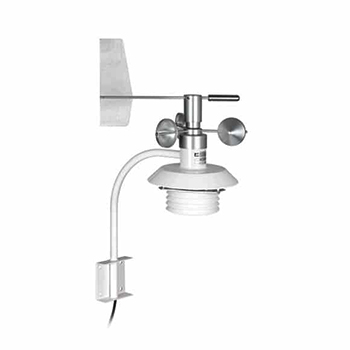

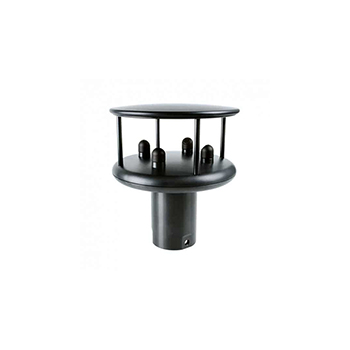

- Monitoring should be continuous during construction hours at minimum in order to document a 24-hour average. Ideally, windspeed and direction should be monitored as well.
- Monitoring should provide alerts so that prompt action can be taken if limits are exceeded.
- Monitoring should be used to evaluate dust mitigation measures to improve practices or reduce costs. Avoid including fugitive dust from other sites in the evaluation by placing a monitor upwind of the fenceline.
- Monitoring reports should be stored for easy retrieval in case of complaints.
Advantages of Automation
Continuous Sampling: Automated monitoring provides continuous sampling of air quality, typically at multiple locations around the construction site.

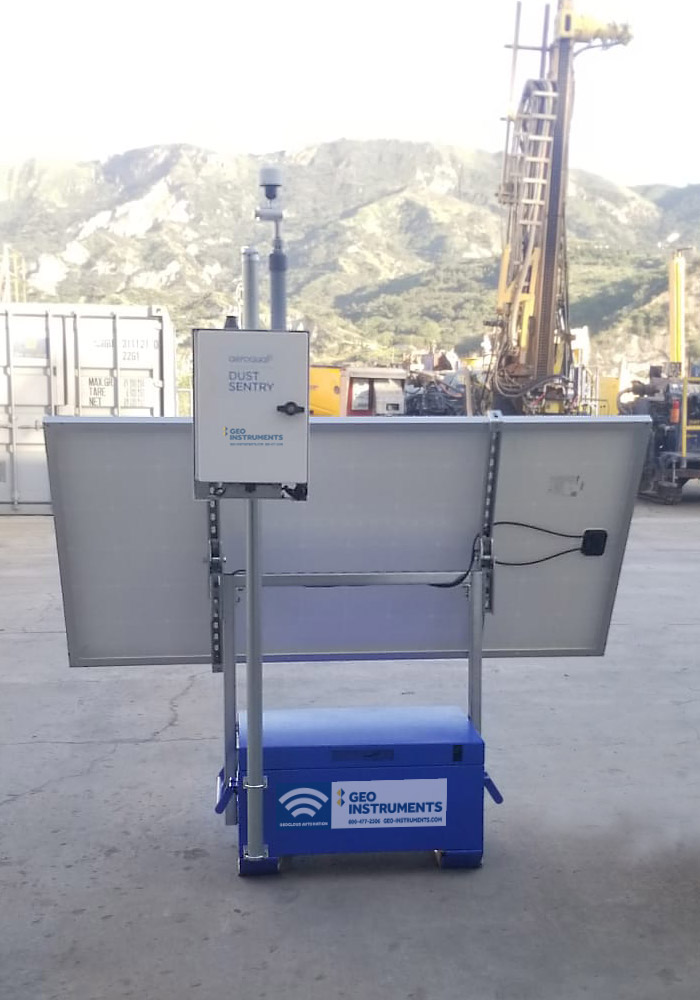

Minimal Maintenance: Each monitor operates autonomously, protected by a weatherproof enclosure and powered by solar-charged batteries.
Timely Alerts: Automated systems can send alerts to on-site project managers for prompt action.

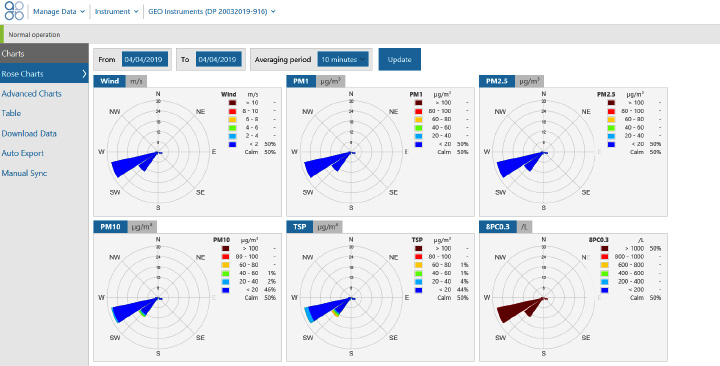

Web Access: Air quality status is displayed on a project website and reports are generated at required intervals. Reports and data are archived automatically for easy retrieval.
Cost-Effective Rentals: Multiple dust monitoring systems cost less and provide better coverage than a roving technician with a hand-held dust monitor.

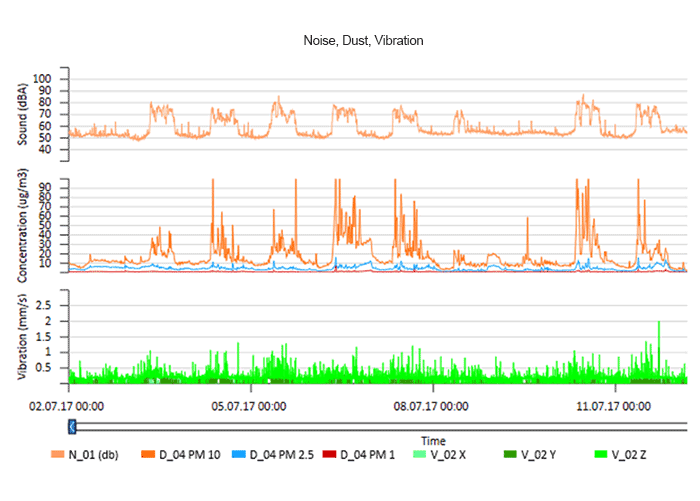

Combination Monitoring: GEO’s automated monitoring platform (AMP) can present data from dust, noise, vibration, and geotechnical measurements all on the same project website. See diagram below.
Automated Monitoring Platform
- AMP accepts measurements from a wide range of monitoring devices.
- Measurements are typically transferred from the project site to the AMP server by cellular-to-internet communications.
- Incoming measurements are preprocessed as needed and then formatted for import into the project database.
- The project database provides centralized storage for measurements, calibration factors, processing instructions, and alarm thresholds.
- Measurements are checked against alarm thresholds, and alarm notifications are sent out as emails or text messages.
- Authorized users log into the project website for access to plan views, plots, and reports, which are generated on demand using the most current data.
Provided with Automated Systems
- Continuous monitoring
- Automatic data transfers
- Automatic alert notifications
- Secure data storage on GEO server
- Automatic data processing on GEO server
- Automatic generation of standard reports
- Automatic generation of customized reports
- Web access to data & reports
- PDF: Automated Dust Monitoring
